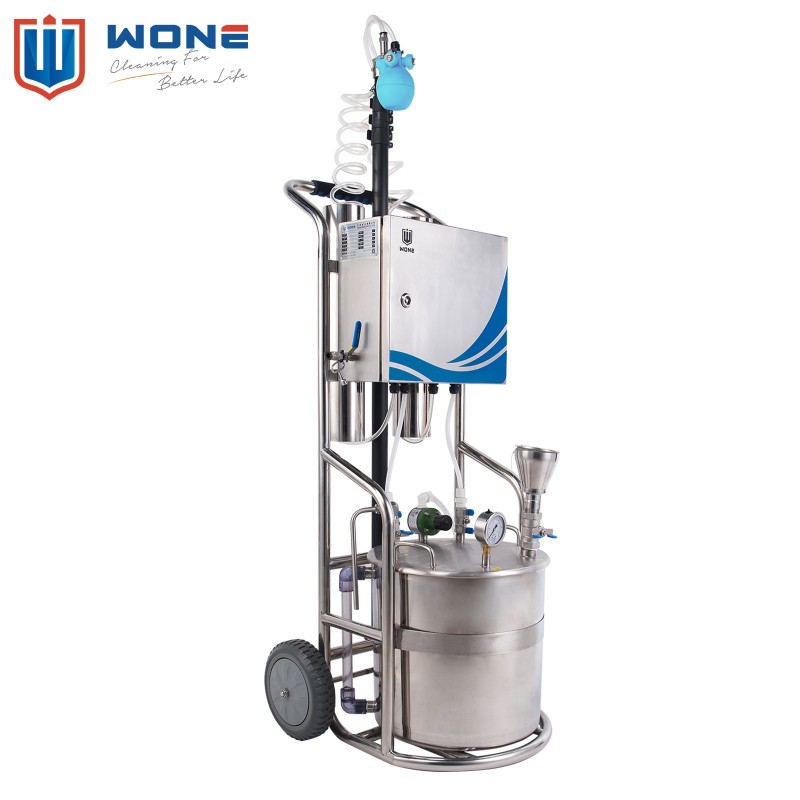

Disinfectant Sprayer trolley ATS-46
ATS-46 fogging machine have 2-stage atomization system, along with height adjustable telescopic rod. Disinfectant can quick fill the whole area for environment and surface disinfection, include diffcult-to-reach places.
- Product Details
- Technical Parameters
- Order Guides
Hygienic design, entirely stainless steel fabricated fogger sprayer machine for air disinfecting or environment moisture control. The ATS-46 mount on a stainless steel cart which is easy moving, 2 stage atomizing system guarantee the fog particles <12um, 4pcs spray nozzles criss-cross installed on the top of a retractable shaft, working diameter up to 8 meters.
Based on your demand, we can also make it to Centralized system.
Features:
- Entirely SUS304 or 316L fabricate, hygiene design.
- Machine mount on a cart, convenient.
- Modular structure, quick disassembly for clean or maintain.
- Liquid storage tank with safety valve. Pressure 2barG limit.
- 30L large liquid storage tank.
- 2 stage atomizing system, fog particles 7.6~11.6um.
- 4 spray nozzles, 4 sides fogging, radius 4meters.
- Machine working height adjustable 1.5~6m.
- Multi functions can use for environment or worker disinfection, dust control or humidification.
Technical Parameters:
- Size: L/600*W/600*H/1200mm
- Working height: Spray nozzles mount on a retractable shaft, height 1.5~6meters adjustable.
- Weight: 15kgs.
- Liquid storage capacity: 30L S/S tank with safety valve (2barG).
- Spray nozzles: 4pcs criss-cross arrange.
- Atomized particle: 7.6~11.6um, 2-stage atomizing system.
- Main Material: SUS304 or 316L.
- Spraying diameter: 8meters.
- Compressed air input: 4-8barG, by 10mm push-in connector.
- Capacity: 500m2/10minutes.
Model |
ATS-46 |
Fogging Capacity |
500m2 in 10minutes |
Height Adjustable |
1500~6000mm |
Fogging Radius |
4000mm |
Energy Source |
Compressed air (4-8barG) |
Compressed Air Connect |
10mm |
Tank Capacity |
30L |
Dimension |
630*630*1220mm |
Weight |
15Kgs |
