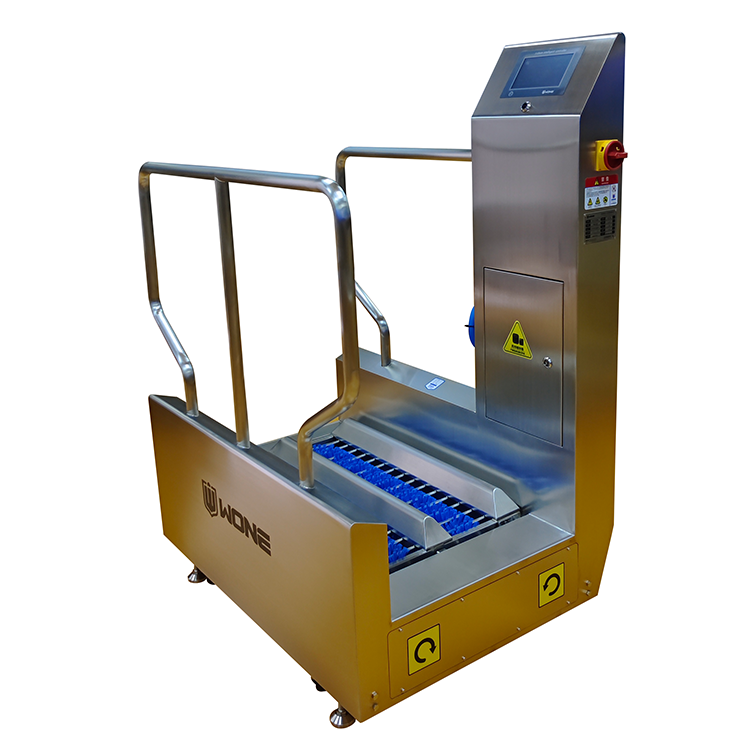

The WONE PBW-21G is a channel-type sole cleaning machine designed for food processing facilities worldwide. Featuring an extended brush

length, the 21G delivers superior sole coverage for larger footwear commonly used in international food plants. Walk through, boots get cleaned

—no stopping, no queuing, no hassle.

In busy food production environments, boot hygiene is the first line of defense against cross-contamination. Mud, grease, flour, blood, and

microorganisms carried on shoe soles can compromise product safety and trigger audit findings.

The PBW-21G solves this with a channel-through design and an extended-length horizontal brush that covers the full boot sole—from heel to

toe, edge to edge. Designed specifically for international markets, it accommodates larger work boots and taller footwear profiles common in

global food factories.

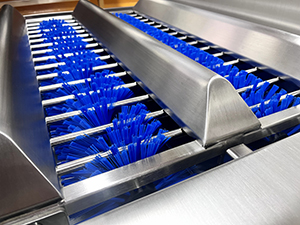

The PBW-21G features a longer horizontal brush, providing wider cleaning surface per pass. This ensures complete sole coverage for large-

size work boots, including the edges and textured grooves that standard brushes often miss. The food-grade high-strength polyester fiber

brush is durable, corrosion-resistant, and safe for all footwear types.

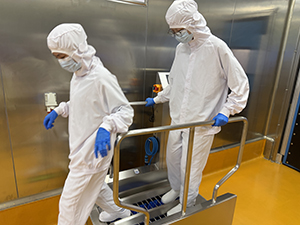

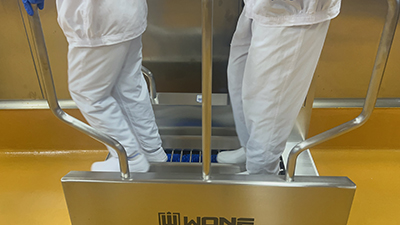

Employees simply walk through at a normal pace. A photoelectric diffuse reflection sensor detects their presence and automatically activates

the brush rotation. No buttons to press, no bending, no stopping. The channel design supports continuous flow—multiple workers pass through

without queuing, making it ideal for shift changes.

• Rotating brush – mechanically scrubs the sole surface
• Water spray – rinses away loosened debris
• Low-foam detergent (B6-05) – breaks down grease, oil, debris, and organic residues

Built with 304 stainless steel, auto-welded with smooth seams. No exposed screws, no corrosion, no bacteria hiding spots. The slanted top

design prevents dust accumulation, and the entire surface can be wiped clean in seconds. Designed to meet food-grade hygiene standards.

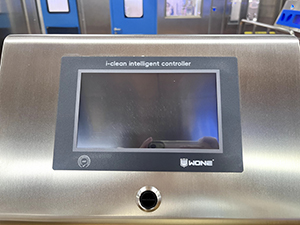

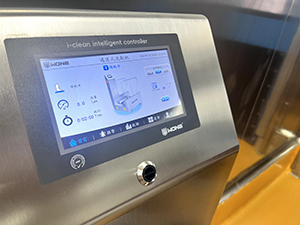

5. i-clean Smart Controller

• Three cleaning modes: Eco wash, Strong wash), and Custom mode
• Usage statistics: Tracks number of users, chemical consumption, and energy usage
• Low-liquid alarm: Automatically alerts when detergent needs refilling
• Self-cleaning program: Programmable auto-clean cycles

5. Quick-Maintenance Design

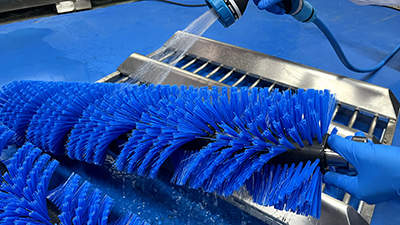

• Tool-free brush removal: Brushes use quick-release connectors—lift out, rinse, and clip back in seconds
• Large-area debris filter: Collects boot sole debris to prevent drain clogs

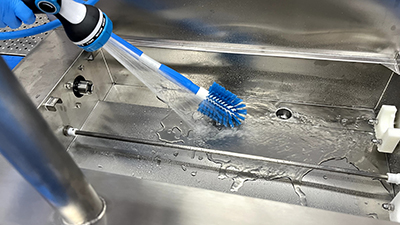

• Included spray gun: 3-meter rotating spray gun for equipment cleaning

Installation & Setup

Very easy to install, just connect the power and water.

• Floor placement: No bolts or floor modification needed. Adjustable feet for uneven surfaces.
• Rollers included: For easy positioning and fine-tuning.
• Water connection: Standard municipal water, 1/2" (DN15) thread, 0.2-0.4MPa.
• Drain: Standard floor drain, OD40mm socket connection.
• Power: Standard 220V/50Hz outlet with leakage protection plug.
• Setup time: Pre-assembled at factory. Connect water, drain, and power—ready to run in minutes.

Upgrade your factory entrance hygiene with the WONE PBW-21G Channel Boot Washer. Contact us for pricing, specification sheets, or to

schedule a product demonstration.
