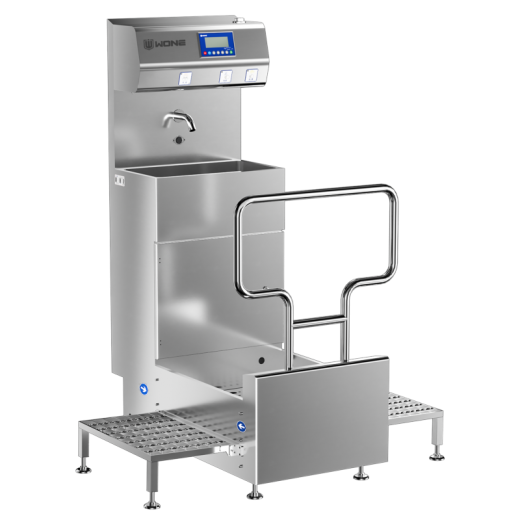

PBW-41 Personnel Hygiene Station
- Product Details
- Technical Parameters
- Order Guides
Automatic soap + Induction faucet +Hand drying +Spray disinfection +Boots disinfection
The PBW-41A hygiene instation includes an automatic hand washing,drying and disinfecting unit, a footwear disinfection basin with/without drip zone. It guarantees fast and efficiently optimal personal hygiene.
When worker step into the dip-tank for soles disinfection, simultaneously, he can wash and disinfect his hands. After that, the turnstile will open (if added). The entire process only take 25s.
Features and Benefits:
- Walk through type, sole disinfection and hands disinfection at the same time.
- Entirely stainless steel 304 finished.
- Sensor operated hands wash,soap,dry, disinfecting unit.
- Sole disinfection basin auto refresh and chemical dilution ratio control.
Sole Disinfection Basin with Drip Zone
- Disinfection basin auto refresh & interval settable.
- Sanitizer dilution and mixing ratio control, supplement.
- Liquid level adjustable by move up or down stainless steel grid.
Hands Disinfection
- Simultaneously while sole disinfection.
- Chamber corners are rounded, easy cleaning, sloped bottom.
- Stainless steel nozzles are delicate designed and state-of-the-art craft, good atomization of disinfectant.
Turnstile and Access Control
- Turnstile will be released only after hands disinfection.
- I-CLEAN Controller with various protection such as chemical lacking, motor overload etc.
- I-CLEAN Controller enable user set sanitizer dose and dilution percentage.
- Card reader, Face ID etc. monitoring system can be integrate into the I-CLEAN Controller.
Model |
PBW-41A |
Performance |
25s/person |
Voltage |
220V/50Hz/1P |
Power Install |
1600w |
Water Connection |
1/2” |
Water Discharge |
1” |
Weight |
115Kgs |
Dimension |
1140*1000*1625mm |
