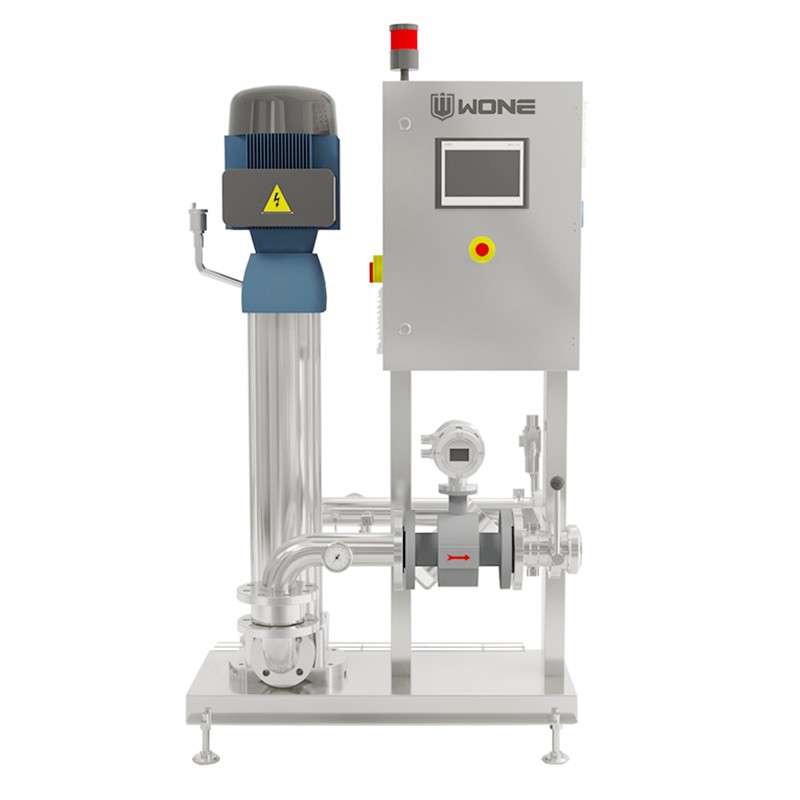

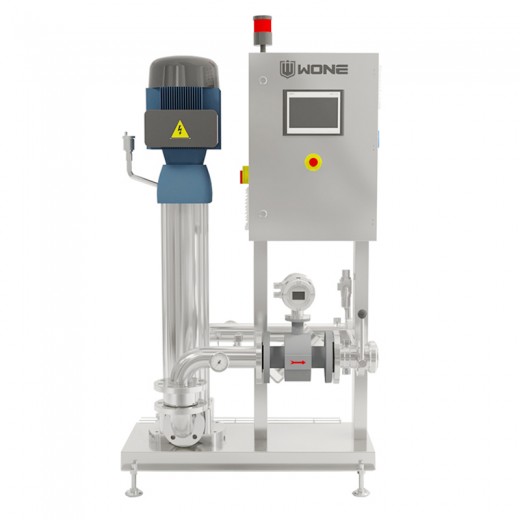

Water Booster EPW-175
- Integration:
- Adjustment:
- i-clean system:
-chemical dosage adjustment;
-abnormal alarm;
-temperature, water flow, pressure monitoring;
-choose/control pumps turn on/off pumps
- Capacity:
- Product Details
- Technical Parameters
- Order Guides
A central cleaning system, also known as foam cleaning centralized station, is an advanced and efficient cleaning solution
designed for large-scale food and beverage processing facilities. This system utilizes the power of foam technology to provide
comprehensive cleaning and sanitization across multiple equipment and processing areas within a centralized system.
Features of WONE central cleaning system
1. Integrated functions
-different from traditional cleaning machines, our machine is with high pressure water rinsing, rich foaming, disifnection,
3 functions in one. can clean various surfaces, equipment, and areas within the open plant environment in the food factory.
2. Cleaning Effectiveness
-our open plant cleaning produces dense foam that sticks to surfaces to thoroughly clean and remove food particles, grease,
and other contaminants.
3. Cleaning Efficiency:
-nozzles are designed to create a thick, rich foam that can be easily directed onto the target surfaces, ensuring thorough
coverage. -0° rinsing nozzel for heavy dirt surface.
-15° rinsing nozzle for large area of rapid cleaning.4. Chemical Compatibility
-our machines are compatible with a wide range of cleaning chemicals and foam solutions. all liquid chemicals are compatible
with our equipment.
5. Ease of Use and Ergonomics
-functional valve design
-nozzle color distinction
-nozzle quick-plug design, easy and convenient operation.
6. Durability and Reliability
-made of 304 stainless steel, made by automatic welding, which is strong and durable. Sanitary-grade pipes and fittings
comply with food hygiene requirements.
7.Safety Features
-Anti-leakage switch design
-waterproof socket design
-lockable chemical box
8.i-clean system
-abnormal alarm
-chemical dosage adjust available
-water, chemical consumption monitoring
-temperature, water flow, pressure monitoring
-choose/control pumps turn on/off pumps
Name |
Water Booster |
||
Model |
EPW-175 |
Clean type |
OPC |
Voltage |
380V/50Hz |
Maximum satellites |
10units |
Power |
7500W |
Water inlet |
63mm(DN50) |
Water flow |
3M/S |
Water outlet |
63mm(DN50) |
Water Consumption |
15L/min |
Safety protect |
Overoad、Short circuit.Leakage protection |
Electricity Consumption |
13W/min |
Water pressure |
20 Bar |
Dimension |
L910 xW640 xH1770mm |
Weight |
183KG |
