Get close to WONE's 4 in 1 foam cleaning machine
Get close to WONE's 4 in 1 foam cleaning machine
What Makes It "4-in-1"?
The EFC-325W foam cleaning machine is more than a high-pressure cleaner. It's a complete cleaning and disinfection system on wheels:|
Function |
Purpose |
|
High-pressure water |
Initial rinsing and final rinse-down of equipment surfaces |
|
Alkaline foam |
Breaks down grease, oil, proteins, and organic residues |
|
Acidic foam |
Removes scale, mineral deposits, and hard water stains |
|
Disinfection |
Sanitizes surfaces after cleaning, meeting food safety standards |
By integrating all four functions, the EFC-325W eliminates the need for multiple machines and chemical transfer steps. One machine, one operator, complete
hygiene cycle.
Product Overview
The EFC-325W features a 7-inch i-clean intelligent controller for on-site cleaning and disinfection management, and a five-position multi-function switching valve.
Key Features at a Glance
304 Stainless Steel Construction
— The entire machine is built from 304 stainless steel with automatic welding. The hygienic, waterproof design makes it easy to clean and maintain, ensuring the
cleaning equipment itself never becomes a contamination source.

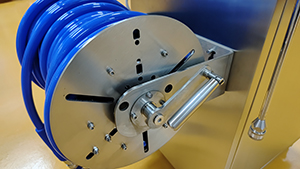

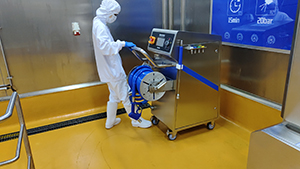

Mobile & Ergonomically Designed
— Equipped with quiet, large rubber casters, the machine moves effortlessly between cleaning points. The ergonomic handle makes maneuvering comfortable,
and the stainless steel hand-crank hose reel keeps the hose neatly coiled and ready for use.
.jpg)

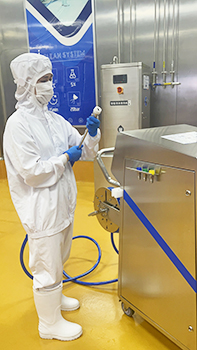

One-Touch Functions Switching
— The five-position multi-function valve allows instant switching between four functions. Quick-connect nozzles with color-coded management make operation
simple and foolproof.
Precision Chemical Concentration
— The six-level adjustable chemical concentration valve provides precise control over cleaning strength. The combination of acidic and alkaline foams effectively
removes both scale and grease — two very different types of soil.

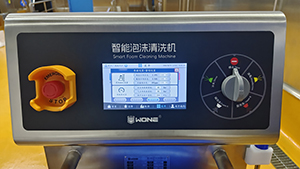

Smart Control & Data Management
— The 7-inch i-clean controller enables fully automatic operation, with energy consumption statistics, abnormal alarms, and color screen + voice human-machine
interaction. Managers can monitor and control on-site cleaning and disinfection in real time.
Technical Specifications
Product name
Intelligent Foam Cleaning Machine
Model
EFC-325W
Working voltage
220V/50Hz with waterproof aviation plug
Main functions
High-pressure water, foam, disinfection
Power
3000W
Outlet pressure
20 bar (max)
Water inlet
3/4" quick-connect + 3m hose
Hose configuration
15m standard / extension hose
Water source
Flow ≥3m³/h, pipe 3/4", pressure 2-5bar, room temperature
Weight
136KG
Dimensions
L990 × W560 × H1180mm
Using the EFC-325W follows a logical, efficient sequence:
1. Pre-rinse — Use high-pressure water to remove loose debris and gross contamination from equipment surfaces.
2. Alkaline foam — Apply alkaline foamto break down grease, oil, proteins, and organic residues. Let the foam dwell for 5-10 minutes (light soil) or 15-30 minutes
(heavy soil).
3. Rinse — Use high-pressure water to flush away the foam and dissolved soils.
4. Acidic foam (when needed) — Apply acidic foam to remove scale, mineral deposits, and hard water stains. Allow appropriate dwell time.
5. Final rinse — Complete with high-pressure water to ensure no residue remains.
6. Disinfection — Switch to disinfectant mode and apply to sanitize all cleaned surfaces, meeting food safety requirements.
Application Scenarios
The EFC-325W is specifically designed for central kitchens, meat processing plants, and multi-cleaning-point small-scope operations. Typical uses include:
- Central kitchens: Cleaning cookware, food processing equipment, walls, and floors across multiple stations
- Meat processing plants: Removing blood, fat, and protein residues from cutting boards, conveyors, and work surfaces
- Dairy plants: Removing milk fat and scale from tanks and pipelines
- Bakery facilities: Cleaning ovens, mixing bowls, and conveyor belts
- Beverage production: Sanitizing filling lines and storage equipment
Why Choose the EFC-325W?
- Four functions in one: No need for separate pressure washer, foam generator, and sanitizing station
- One-touch switching: Instantly switch between cleaning modes without stopping work
- Mobile design: Quiet casters and ergonomic handle for easy movement between cleaning points
- Smart data: i-clean controller provides energy statistics and usage records for compliance
- Food-grade materials: 304 stainless steel ensures the equipment meets hygiene standards
- Color-coded nozzles: Quick-connect nozzles in different colors prevent cross-use errors
The WONE EFC-325W Intelligent Foam Cleaning Machine represents a step forward in food factory equipment hygiene. By integrating high-pressure rinsing,
alkaline foam, acidic foam, and disinfection into one mobile, smart-controlled unit, it simplifies cleaning workflows, reduces chemical management complexity, and
improves cleaning consistency — all while meeting the strictest food safety standards.
For more information about the EFC-325W or to schedule a product demonstration, contact us.
